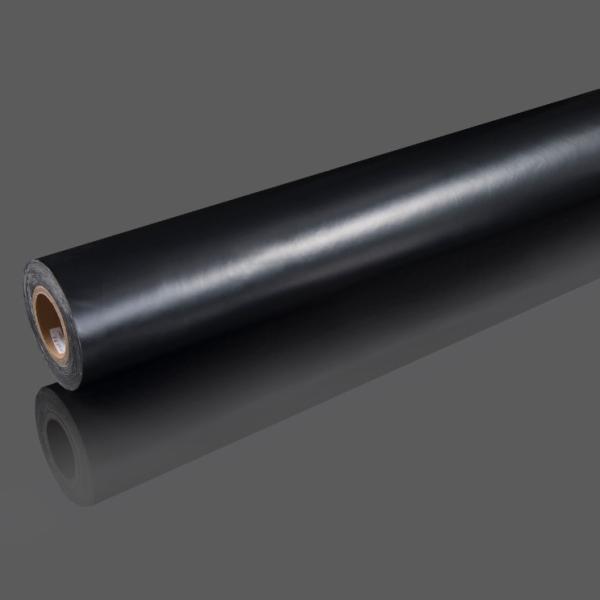

Synthetic Roofing Underlayments Application Cross Laminated Film
Description:
It is made of HDPE Film as the carrier which through multi-layer co-extrusion blow molding
into embryos, and then by multiple pull Stretching, then rotary cutting into a film substrate
at vertical distribution of 45 °, finally through cross-compositing by lamination machine.
Due to its cross-stacking structure is different from ordinary single-layer or multi-layer film,
it has the thermal stability, dimensional stability, two-way tear resistance, two-way uniform
tension and high elongation which are not available in traditional films. Make it the ideal
surface film for underlayment and waterproofing membranes.
Parameter:
| NO. | Item | Performance |
| | | SDM-30 | SDM-60 |
| 1 | Tensile Property | Tensile Strength/Mpa ≥ | 30 | 50 |
| | | MaxF/(N/50mm) ≥ | 200 | 300 |
| | | Elongation as MaxF/% ≥ | 200 |
| | | Elongation at break/% ≥ | 250 |
| 2 | Sample number of no broken tested by free-falling dart method ≥ | 8 |
| 3 | Tear Strength(Nail Shank)/N ≥ | 60 |
| 4 | Angle Tear Strength/N ≥ | 25 |
| 5 | Thermal Stability | 120 ℃,10min, No bulb, No deformation |
| 6 | Cryogenic Flexibility ℃ | -35℃, No fissure, No delamination |
| 7 | Thermal Ageing | Appearance | No bulb, No deformation |
| | | Subsequent MaxF/% ≥ | 80 |
| | | Elongation at MaxF/% ≥ | 200 |
| | | Elongation at break/% ≥ | 200 |
| 8 | Artificial Weathering | Appearance | No bulb, No deformation |
| | | Subsequent MaxF/% ≥ | 70 |
| | | Elongation at MaxF/% ≥ | 180 |
| | | Elongation at break/% ≥ | 180 |
Advantages:
- Excellent dimensional stability.
- Two-way tear resistance.
- Performance against UV radiation.
- High strength and high elongation performance.
- Unique puncture resistance.
- Anti-slip function.
Application:
1. Surface material for slope roof underlayment;
2. Waterproofing membranes;
3. Labels & Tages;
4. Packaging materials.
