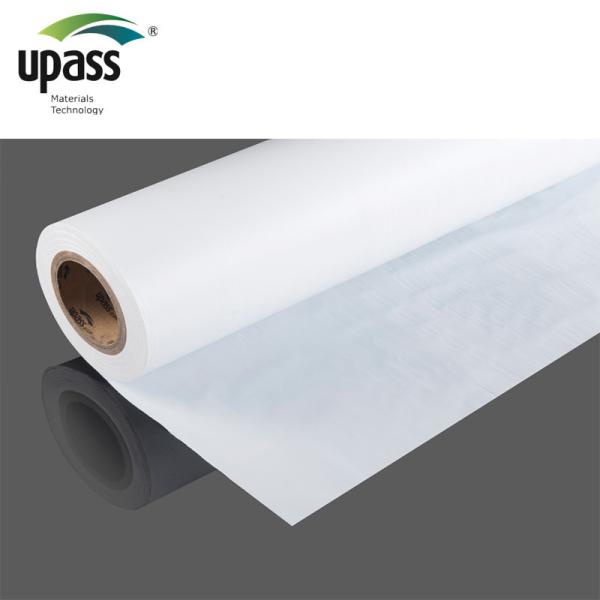

Printing Label Application White Color Cross Laminated Film

Brand Name : Upass

Model Number : Cross Laminated Film

Certification : CE, ROHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T,L/C

Supply Ability : 200,000㎡~300,000㎡

Delivery Time : 15days

Packaging Details : Bubble Wrap & Wooden Pallet

Product Name : Printing Label Application White Color Cross Laminated Film

Material : HDPE

Production Process : Cross Laminated

Performance : Anti-slip

Thickness : 0.09-0.26

Width : 100-1250mm

Color : Black, Grey, Blue, Green, etc.

Application : Underlayment, Waterproofing membrane

Printing : Can be customizable

Sample : Available

Contact Now

Printing Label Application White Color Cross Laminated Film

Description:

What is cross laminated strength film?

It is a high-strength multi-layer composite film,It is made of HDPE as the carrier,

adding plasticizer, plasticizer, stabilizer, antioxidant, UV absorber, toughener and other

additives through multi-layer co-extrusion blow molding into embryos, and then by multiple

pull Stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution of 45 °, and finally through cross-compositing. Due to its cross-stacking structure is different from ordinary single-layer or multi-layer film, it has the thermal stability, dimensional stability, two-way tear resistance, two-way uniform tension and high elongation which are not available in traditional films.

Why cross laminated strength film?

Cross laminated film is an extremely versatile, high-performance product line that resists tearing, puncturing, and weathering. Our proprietary, cross-lamination manufacturing process provides considerably tighter gauge control than competitive spun bonded, smoother printing surfaces, and ease in converting. Cross laminated film is so strong that it will not tear, even when nicked, and withstands cold temperature. UV stabilized, hold up well during outdoor exposure and provides superior moisture and chemical resistance making it ideal for engine tags as well as cruise and freight tags.

Parameter:

NO. Item Performance
SDM-30 SDM-60
1 Tensile Property Tensile Strength/Mpa ≥ 30 50
MaxF/(N/50mm) ≥ 200 300
Elongation as MaxF/% ≥ 200
Elongation at break/% ≥ 250
2 Sample number of no broken tested by free-falling dart method ≥ 8
3 Tear Strength(Nail Shank)/N ≥ 60
4 Angle Tear Strength/N ≥ 25
5 Thermal Stability 120 ℃,10min, No bulb, No deformation
6 Cryogenic Flexibility ℃

-35℃,

No fissure, No delamination

7 Thermal Ageing Appearance No bulb, No deformation
Subsequent MaxF/% ≥ 80
Elongation at MaxF/% ≥ 200
Elongation at break/% ≥ 200
8 Artificial Weathering Appearance No bulb, No deformation
Subsequent MaxF/% ≥ 70
Elongation at MaxF/% ≥ 180
Elongation at break/% ≥ 180

Advantages:

► Corona treated for optimal results when flexo, offset, or screen printed
► Outdoor Durability: UV stabilized for improved weather resistance and performance in harsh environments
► Good ink adhesion: non-smearing
► Chemical and Oil Resistance
► Pre-printed or print-on-demand
► Excellent Staple Pullout Resistance

Application:

Printing Label Application White Color Cross Laminated Film

Printing Label Application White Color Cross Laminated Film

FAQ:

Q1: Are you trading company or manufacturer ?

A1: We are manufacturer.

Q2: Do you provide samples ? is it free or extra ?

A2: Yes, we could offer A4 sample for free charge but if you need in roll,

we can offer 100-200m/roll for free, but shipping cost need you to paid.

Q3: How long is your delivery time?

A3: Depends on your quantity. Generally it is about 30 days for 20GP container.

Q4: How to pay for your goods?

A4: By L/C, by T/T (30% deposit before production, 70% balance before loading).

Why Upass:

Upass, founded in 2008, now as a governing unit of China Building Waterproof Association, a vice chairman unit of Professional Committee of China Modified Plastic Association, an enterprise with Triple A credibility in China Plastic Association, not only assists the development of the relevant industries, but also upholds the conception of sustainable development by successive technological innovation. Upass so far has acquired over 100 of intellectual property rights.

1. Taicang Production Plant:

Printing Label Application White Color Cross Laminated Film

2. Chenzhou Production Plant:

Printing Label Application White Color Cross Laminated Film
