Cross Laminated Film For Bitumen Waterproof Membranes

Name: Cross Laminated Film For Bitumen Waterproof Membranes
Brand: Upass
Price: 1 USD

Cross Laminated Film For Bitumen Waterproof Membranes Manufactures

Brand Name : Upass

Model Number : Cross Laminated Film

Certification : CE, ROHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T,L/C

Supply Ability : 200,000㎡~300,000㎡

Delivery Time : 15days

Packaging Details : Bubble Wrap & Wooden Pallet

Product Name : Cross Laminated Film For Bitumen Waterproof Membranes

Material : HDPE

Production Process : Cross Laminated

Performance : Thermal Dimensional Stability

Thickness : 0.09-0.26

Width : 100-1250mm

Color : Black, Grey, Blue, Green, etc.

Application : Underlayment, Waterproofing membrane

Printing : Can be customizable

Sample : Available

Contact Now

Cross Laminated Film For Bitumen Waterproof Membranes

Description:

OUR THREE STEP PROCESS FOR MANUFACTURING HIGH STRENGTH,

DURABILITY, AND QUALITY PLASTIC FILMS IS THE KEY TO SUCCESS.

Step 1: Extrusion

► High density polyethylene resin (HDPE) is extruded via the blown film process

to form a tube. The tube is cooled and collapsed into a flat tube.

► After the tube is flattened, it is fed into a multi stage orienter. During orientation,

the film is stretched in the machine direction aligning the polyethylene molecules.

The resulting film is very strong in the machine direction.

► The oriented tube is then annealed and wound up. The annealing step removes

stress in the film and controls shrinkage.

The annealed film retains its high MD strength.

Step 2: Spiral Cutting

► The next step of the process is spiral cutting. In this step, the flattened, oriented

tube in unrolled, rotated and re-inflated to form a round tube.

► As the film is fed forward and rotated, it is cut on a bias (around 45 degrees) and

wound up. The spiral cut film’s orientation is at 45 degrees to the machine direction.

Step 3: Cross Lamination

► Finished spiral cut rolls are mounted on corresponding spindles.

► Films are fed through and laminated with an extruder with their orientation directions

crossed at 90 degrees. The films are laminated together with a layer of polyethylene.

► After lamination, film is surface treated for ink adhesion and graphic purposes. Finally,

the film is wound on a core to estimated yardage.

Cross Laminated Film For Bitumen Waterproof Membranes

Parameter:

NO.	Item		Performance
			SDM-30	SDM-60
1	Tensile Property	Tensile Strength/Mpa ≥	30	50
		MaxF/(N/50mm) ≥	200	300
		Elongation as MaxF/% ≥	200
		Elongation at break/% ≥	250
2	Sample number of no broken tested by free-falling dart method ≥		8
3	Tear Strength(Nail Shank)/N ≥		60
4	Angle Tear Strength/N ≥		25
5	Thermal Stability		120 ℃,10min, No bulb, No deformation
6	Cryogenic Flexibility ℃		-35℃, No fissure, No delamination
7	Thermal Ageing	Appearance	No bulb, No deformation
		Subsequent MaxF/% ≥	80
		Elongation at MaxF/% ≥	200
		Elongation at break/% ≥	200
8	Artificial Weathering	Appearance	No bulb, No deformation
		Subsequent MaxF/% ≥	70
		Elongation at MaxF/% ≥	180
		Elongation at break/% ≥	180

Why Cross Laminated?

Puncture Resistance: less accidental damage
Thermal Dimensional Stability: No fish-mouthing or controlled shrinkage
Cold temperature resistant down to -30°C/-20°C
Cross laminated film allows waterproofing membranes to bridge gaps in sheathing
Resistant to damage from incidental movement and settling of the roof
UV Stability for typical job site exposure

Application:

Cross Laminated Film For Bitumen Waterproof Membranes

Product Tags:

Bitumen Cross Laminated Film

Underlayment Printing Cross Laminated Film

Spiral Cutting Cross Laminated Film

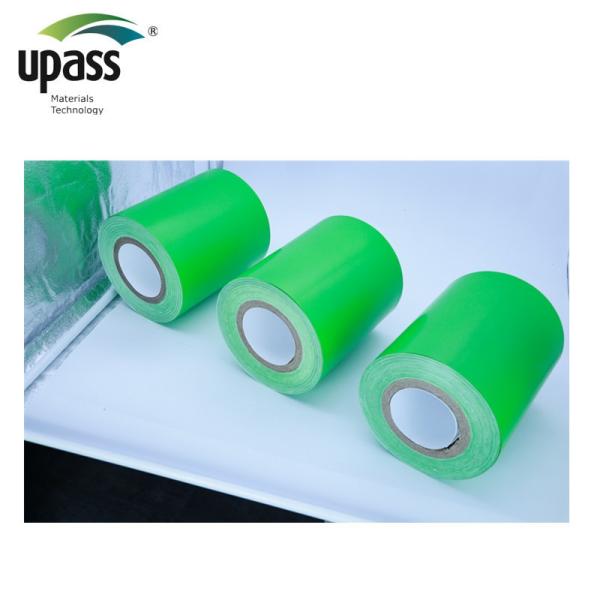

Cross Laminated Film For Bitumen Waterproof Membranes Images
