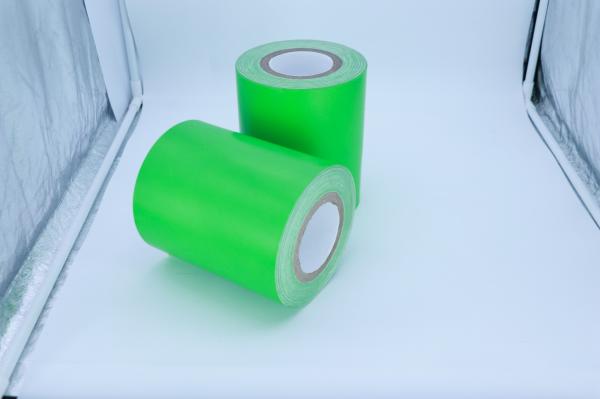

UV Resistant Fluorine 0.15mm 150um Anti Corrosion Film

Brand Name : Upass

Model Number : Laminated Film

Certification : CE, ROHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T,L/C

Supply Ability : 200,000㎡~300,000㎡

Delivery Time : 15days

Packaging Details : Bubble Wrap & Wooden Pallet

Product Name : UV Resistant Fluorine Anti Corrosion Film

Material : Fluorine film+ cross laminated film

Production Process : Film Blowing and Laminated

Performance : weather resistance

Thickness : 0.09-0.15mm

Width : 100-1250mm

Color : White

Application : Tapes, Waterproofing membranes

Printing : Can be customizable

Sample : Available

Contact Now

UV Resistant Fluorine Anti Corrosion Film

Description:

It is specially designed for waterproofing industry, which shall substitute conventional

exposed waterproofing material including the film for waterproofing membrane.

It also has cost effectiveness, and lasts over 25years of weather resistance.

Structure:

It is laminated film, fluorine film laminated with PET film.
Inner side, it is PET film;
Outer side is fluorine film (Aging or Weather resistance).

UV Resistant Fluorine 0.15mm 150um Anti Corrosion Film

Advantages:

1. Excellent properties of anti-aging
2. UV resistance
3. Weather resistance
4. Chemical corrosion resistance
5. Resistance to high temperature,heat,humidity and extreme cold
6. Reflectivity of over 85%
7. High strength, tear resistance

Application:

It is used as the surface material:
1. For waterproofing membranes;
2. For weather resistance tapes.

Weather Resistance Tape Application:

UV Resistant Fluorine 0.15mm 150um Anti Corrosion Film

Waterproof Membranes Application:

UV Resistant Fluorine 0.15mm 150um Anti Corrosion Film


Parameter:

Detection Item Detection Method Detection Value Remark
Thickness UF509 GB/T6672-2001 0.128mm /
Width GB/T6673-2001 / According to customer needs
Max force UF509 GB/T 328.9-2007 MD:324N Rectangular spline, spline width 25mm, stretching rate: 100mm / min, fixture gauge distance: 100mm
TD:348N
Elongation at Break UF509 MD:406%
TD:260%
Tensile Strength UF509 GB/T 529-2008 MD:47N Stretching speed:250mm/min
TD:43N
Surface Tension GB/T14216 ≧42dyn/cm Dyne Pen Test
Dimensional change rate UF509 GB/T 35467-2017 MD:0.96% 90℃&24h
TD:0.77%
Water vapor transmission rate GB/T 21529 ≦70 g/m2.24h (20um) 38℃+100%RH
Electrolytic sensor method
Flammability grade UL94 VTM-0 White weathering film
Aging test PCT96 / Yellowing index △b≤2.0, Temperature 121 ℃, humidity 100%, air pressure 2atm, time 48h
UV300KWh IEC61215 The temperature of the sample is 60 ± 5 ℃, and the total exposure is 120KWh • m2, of which UVB accounts for 3% -10%.
DH2000h IEC61215 Temperature 85 ℃, humidity 85% R.H., 2000h
TC400 IEC61215 Temperature －40 ℃ ～ 85 ℃, 6h / cycle, 400cycle

FAQ:

1).Can you offer free samples?

Yes, we provide free samples, but we usually don't pay for freights.

2).Can you support customization?

Sure, OEM&ODM are available.

3).Are you factory or trading company?

We are manufacturer located in Taicang, we also have new plant in Chenzhou Hunan, welcome to visit us anytime.

4).What's your payment terms?

Usually we prefer T/T, 30% deposit and 70% balance before shipmen. Anyway, T/T, L/C, Western Union, Money Gram, are acceptable.

About UPASS:

Upass, founded in 2008, now as a governing unit of China Building Waterproof Association, a vice chairman unit of Professional Committee of China Modified Plastic Association, an enterprise with Triple A credibility in China Plastic Association, not only assists the development of the relevant industries, but also upholds the conception of sustainable development by successive technological innovation. Upass so far has acquired over 100 of intellectual property rights.

Taicang Production Plants:

UV Resistant Fluorine 0.15mm 150um Anti Corrosion Film

Chenzhou Production Plant:

UV Resistant Fluorine 0.15mm 150um Anti Corrosion Film

Certificates:

UV Resistant Fluorine 0.15mm 150um Anti Corrosion Film

UV Resistant Fluorine 0.15mm 150um Anti Corrosion Film

UV Resistant Fluorine 0.15mm 150um Anti Corrosion Film
